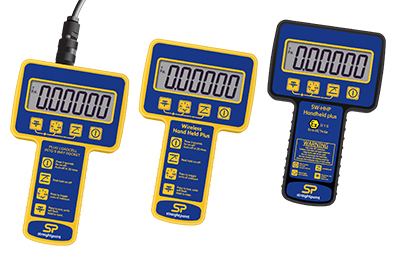

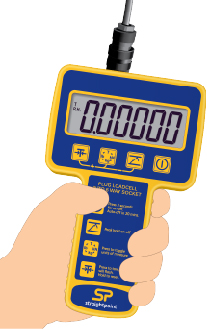

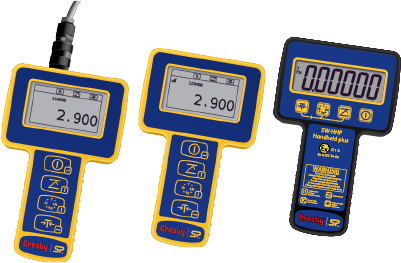

The Handheld plus is a rugged and versatile digital handheld display with a broad range of features and suitable for all Straightpoint load cell products.
At the heart of the ergonomically designed Handheld plus is a powerful PCB providing industry leading features such as user selectable units of measure (tonnes, lbs, kg and kN), programmable audible overload alarm, peak hold, pre-set tare and a user resettable overload counter.
This crucial overload alarm counter is a requirement for many safety and quality control departments, as it keeps track of overload events, allowing the load cell in question to be removed from service immediately, following the calibration voiding overload event. The load cell in question can then be sent out for proper testing and, if necessary, recalibration before re-entering service.
The HHP is suitable for connection via cable to any Straightpoint cabled load cell product and easily adapted to any other manufacturers’ load cell product with a mv/v output.
In addition to the standard HHP the SW-HHP is suitable for connection to any Straightpoint wireless load cell, has a range of up to 700m/2300ft and is supplied as standard with the Radiolink plus load cell.
- Overload counter
- User settable 90db audible overload alarm
- Multiple display units – tonnes, lbs, kg and kN
- 100Hz Peak hold
- Pre-set tare
- Unrivalled Wireless range 700m/2300ft
- Radiolink Plus
- Wireless Load Shackle
- Wireless Compression
- Wirelink Plus
- Miniweigher Plus
- Compression Loadcell
- Shackle Loadcell
- 2 year warranty
SUPPLIED WITH THE FOLLOWING AS STANDARD
- AA Batteries
- Operator Manual

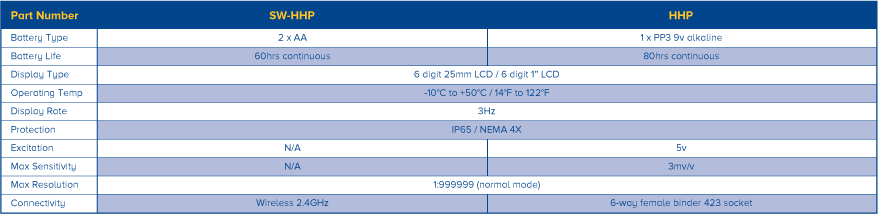

Handheld plus specifications
|Battery Type||1 x PP3 9v Alkaline||2xAA|
|Battery Life||80 hrs continuous||60 hrs continuous|
|Display Type||6 digit 25mm/1" LCD|
|Operating Temp||-10 to +50 °C / 14 to 122 ˚F|
|Protection||IP65 or NEMA 4X|
|Max resolution||1:999999 (normal mode)|
|Connectivity||6-way Female Binder 423 Socket||Wireless 2.4 GHz|
ATEX/IECEx Option Available on wireless Handheld plus
IECEx SIR 15.0072X / Sira 15ATEX2196X
