The Straightpoint Wireless Compression LoadSafe (WNI). No longer hindered by troublesome and hard to maintain cables, large scale projects can be completed in a fraction of time previously required. Multiple compression loadcells can all connect wirelessly to our range of PC software via a USB dongle, to our iOS and Android app or to our SW-HHP wireless handheld display.
Maintenance and repair costs are all but eliminated due to the absence of cables and connectors, and the products flexibility opens the door to a large number of applications in the heavy lift, energy, defence, rigging, shipping, and general transportation sectors.
Two versions of the WNI are available:
- Long range 2.4GHz version providing industry leading wireless range of 700m or 2300ft to SP's SW-HHP handheld or WCOGS software
- Bluetooth output and can be connected to any smart phone running our free HHP app on iOS or Android at ranges up to 100m or 328ft.
Connected to our wireless centre of gravity software (WCOGS) the WNI loadcell can be used to weigh and verify center of gravity of large and heavy objects which may not be evenly proportioned. The system will report weight on each individual loadcell, total weight and C of G in an html report based on ISO19901.
Straightpoint’s Wireless Compression Load Cells are machined from high grade 17-4PH stainless steel, providing excellent strength and corrosion resistance and making them suitable for the most arduous industrial conditions.
FEATURES
- Proprietary 2.4 GHz Wireless or Bluetooth options
- Accuracy of 0.1% FS
- Environmentally sealed to IP67/NEMA 6
- Stocked capacities up to 1000t
- Industry leading wireless range up to 700m or 2300ft
- Internal antennae
- ATEX & IECEx version for hazardous area zones 0, 1 & 2 available
- Battery life of 1200hrs
- Compact size
- Remote on-off
APPLICATIONS
- Centre of gravity weighing and calculating
- Measurement of systems on and offshore such as jackets and modules
- Steel fabrication shops
- Portside weighing bonded containers
- Structural monitoring with shoring props
- Lifting bridges and other large installations
- Heavy equipment moving companies
- Used alongside Self-propelled modular trailer (SPMT)
WARRANTY & ASSURANCE
- 2 year warranty
- Complies with ASME B30.26
- Design validated by F.E.A.
SUPPLIED WITH THE FOLLOWING AS STANDARD
- AA Batteries
- Proof test certificate
- Operator Manual
- Carry/Storage Case
Specifications/Technical Data
 |
Compression load cell additional technical data
- Material of construction: 17-4PH H900 stainless steel. Aluminium jacket 6000 series
- Finish: Stainless steel – polished. Jacket blue anodized to BS EN 12373-1:2001 Class 10.
- MTBF to WLL: Typically, >50 million cycles
- Elongation: Typically, <0.175mm / at WLL
N.B. Clearance of box may vary from the images displayed depending on capacity required.
|
|
Wireless Approvals
Federal Communications Commission
FCC: VHARA24
Industry Canada
IC: 7224A-RA24
Japan Certification
ID: 205-170296
Korea Certification
ID:R-CRM-1ME-RA24
|
|
| |
|

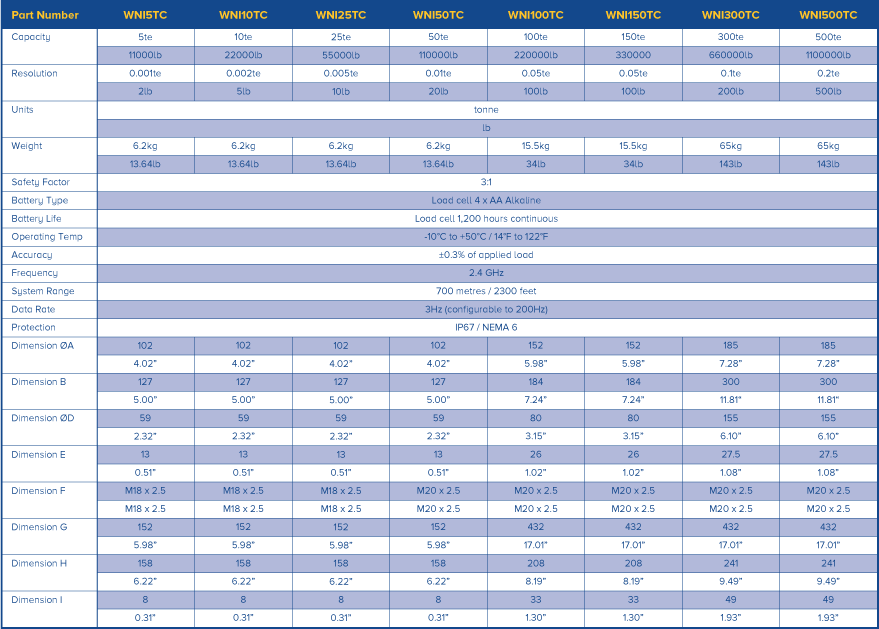

Compression load cell specifications
|
| Part Number |
WNI5TC |
WNI10TC |
WNI25TC |
WNI50TC |
WNI100TC |
WNI150TC |
WNI300TC |
WNI500TC |
WNI1000TC |
| Capacity |
5te |
10te |
25te |
50te |
100te |
150te |
300te |
500te |
1000te |
| 11,000lb |
22,000lb |
55,000lb |
110,000lb |
220,000lb |
330,000lb |
660,000lb |
110,0000lbs |
2200000lbs |
| Resolution |
0.001te |
0.002te |
0.005te |
0.01te |
0.05te |
0.05te |
0.1te |
0.2te |
0.5te |
| 2lb |
5lb |
10lb |
20lb |
100lb |
100lb |
200lb |
500lb |
1000lb |
| Units |
tonne |
| lbs |
| Weight |
6.2kg |
6.2kg |
6.2kg |
6.2kg |
15.5kg |
15.5kg |
65kg |
65kg |
172kg |
| 13.64lb |
13.64lb |
13.64lb |
13.64lb |
34lb |
34lb |
143lb |
143lb |
379lb |
| Safety Factor |
3:1 |
| Battery Type |
Loadcell 4 x AA Alkaline |
| Battery Life |
Loadcell 1200hrs continuous |
| Operating Temp |
-10 to +50 °C |
| 14 to 158˚F |
| Accuracy |
±0.1% full scale |
| Frequency |
2.4GHz |
| Range |
700 metres (100m if Bluetooth) |
| 2300 feet (328ft if Bluetooth) |
| Data Rate |
3Hz ( Configurable to 200 Hz) |
| Protection |
IP67 |
| NEMA 6 |
| Dimension ØA |
100 |
100 |
100 |
100 |
152 |
152 |
185 |
185 |
362 |
| 3.94 |
3.94 |
3.94 |
3.94 |
5.98 |
5.98 |
7.28 |
7.28 |
14.25 |
| Dimension B |
127 |
127 |
127 |
127 |
184 |
184 |
300 |
300 |
310 |
| 5.00 |
5.00 |
5.00 |
5.00 |
7.24 |
7.24 |
11.81 |
11.81 |
12.20 |
| Dimension ØD |
59 |
59 |
59 |
59 |
80 |
80 |
155 |
155 |
270 |
| 2.32 |
2.32 |
2.32 |
2.32 |
3.15 |
3.15 |
6.10 |
6.10 |
10.63 |
| Dimension E |
16 |
16 |
16 |
16 |
26 |
26 |
27.5 |
27.5 |
40 |
| 0.63 |
0.63 |
0.63 |
0.63 |
1.02 |
1.02 |
1.08 |
1.08 |
1.57 |
| Dimension F |
M18 x 2.5 |
M18 x 2.5 |
M18 x 2.5 |
M20 x 2.5 |
M20 x 2.5 |
M20 x 2.5 |
M20 x 2.5 |
M20 x 2.5 |
M30x3.5 |
| M18 x 2.5 |
M18 x 2.5 |
M18 x 2.5 |
M20 x 2.5 |
M20 x 2.5 |
M20 x 2.5 |
M20 x 2.5 |
M20 x 2.5 |
M30x3.5 |
| Dimension G |
152 |
152 |
152 |
152 |
432 |
432 |
432 |
432 |
950 |
| 5.98 |
5.98 |
5.98 |
5.98 |
17.01 |
17.01 |
17.01 |
17.01 |
37.40 |
| Dimension H |
158 |
158 |
158 |
158 |
208 |
208 |
241 |
241 |
422 |
| 6.22 |
6.22 |
6.22 |
6.22 |
8.19 |
8.19 |
9.49 |
9.49 |
16.61 |
| Dimension I |
22 |
22 |
22 |
22 |
33 |
33 |
49 |
49 |
102 |
| 0.87 |
0.87 |
0.87 |
0.87 |
1.30 |
1.30 |
1.93 |
1.93 |
4.02 |
Accessories
Straightpoint Load Cell Wireless Accessories
Below are wireless accessories to compliment Straightpoint's range of wireless dynamometer load cells.
Wireless remote controls, alarms, PC software and LED displays for load sensors ensure safe, easy and comfortable load cell force monitoring and measurement.
SW-OAM
Wireless overload alarm module
The SW-OAM is a wireless relay module featuring audio and visual warning indicators. The unit’s two set point alarms can be triggered from a single or summed group of up to eight Straightpoint wireless load cells. The SW-OAM is ideal as a Wireless Overload Detection System.
Datasheet Download
SW-AO1i
Wireless base station with analogue output
The SW-AO1i provides a configurable analog output for any single Straightpoint Wireless Load Cell and is ideal for integration to a PC, PLC or other Data Acquisition Systems. Housed in a NEMA 4 enclosure the output can be selected from pre-calibrated voltage and current ranges of 0-5vdc, +-5vdc, 0-10vdc, +-10vdc, 0-20mA, 4-20mA.
Datasheet Download
SW-SO
Serial output ASCII string module
Ideal for integration to a PC, PLC or other device requiring a simple RS232 serial input, this module allows for a user defined ACII string which can include individual or summed data from up to eight Straightpoint Wireless Load Cells.
Datasheet Download
SW-RWT Rugged Tablet
The SW-RWT tablet is the latest generation fully-rugged tablets. Featuring an array of integrated options, and a sleek, sophisticated design, the SW-RWT will change the way you look at tablets. With a MIL-STD-810G rating and Windows® 7 Pro, the SW-RWT can go from the boardroom to the work site
Datasheet Download
SW-MWLCMultiple wireless load cell controller software This software for Windows PC's allows up to 24 of our wireless loadcells to be viewed and logged cable free to a CSV file. You can configure the number of loadcells (max 24), and set extra channels to sum data or record peaks etc. These configurations can be saved and re-loaded at any time.
Datasheet Download
SW-SD
Wireless slave display
This 100mm (4”) scoreboard LED display is wireless and viewable for up to 150 ft. Perfect for installation on a crane gantry the unit operates on 110-240 VAC and display’s an individual load or summed load for up to eight Straightpoint Wireless devices.
Datasheet Download
SW-SB
Wireless signal booster
The SW-SB signal booster/repeater module is battery operated and easily pairs to any Straightpoint Wireless device e.g. load cell, accessories, and software solutions within range, quickly increasing coverage and extending range.
Datasheet Download
SW-GW1
Modbus RTU/ASCII Gateway
The SW-GW1 is a Modbus interface gateway that provides a simple interface allowing users to gather data from Straightpoint Wireless devices using either the standard Modbus RTU protocol or a simple ASCII protocol.
Datasheet Download
