The Straightpoint Wireless Compression Load Cell is taking the heavy lift and structural weighing industry by storm. By adding the Straightpoint wireless system to the already popular compression load cell line we have developed a cost-effective alternative to standard compression load cells. No longer hindered by troublesome and hard to maintain cables, large scale projects can be completed in a fraction of time previously required.
Bluetooth option is available and supplied with a free HHP for iOS and Android
Maintenance costs are all but eliminated due to the absence of cables and connectors, and the products flexibility opens the door to a large number of applications in the heavy lift, energy, defence, rigging, shipping, and general transportation sectors, previously not considered.

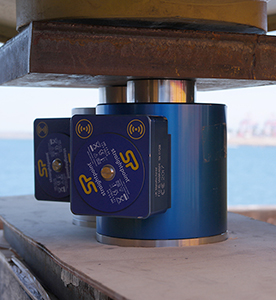

Straightpoint’s Wireless Compression Load Cells are machined from high grade stainless steel, providing excellent strength and corrosion resistance. The heavy duty, compact load cell utilises Straightpoint’s advanced microprocessor based electronics and benefits from unrivalled resolution and accuracy. Data transmission is handled by the Straightpoint wireless systems proprietary transport protocol, is unmatched in performance and capable of a licence free transmission range of up to 700 metres or 2300 feet.
It is not until you add the powerful array of wireless accessories that the full potential of this product is realised. These accessories which include a wireless signal booster and several user friendly Windows-based software packages, provide a level of flexibility not previously known in the load monitoring industry. When used with Straightpoint’s WCOGS software these load cells will calculate centre of gravity and load.

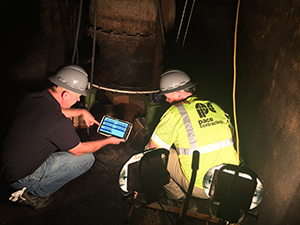

Connected to SW-MWLC it will allow the ability to data log and print reports, allowing the simultaneous display and monitoring of up to 100 wireless compression load cells on your PC or tablet. Lastly, coupled with Straightpoint’s SW-PTP software the operator can perform load tests at a safe distance and generate real time test certificates on site.
- Proprietary 2.4 GHz Wireless
- Industry leading wireless range of 700m/2300ft
- Connects to SW-MWLC, WCOGS & SW-PTP software
- Internal antennae
- No cable assemblies required
- Unmatched battery life of 1200hrs
- Reduced maintenance cost
- Compact size
- Remote on-off
- Environmentally sealed to IP67/NEMA 6
- Error Free Data Transmission
- Unrivalled Resolution
- Measurement of systems on and offshore
- Steel fabrication shops
- Portside weighing bonded containers

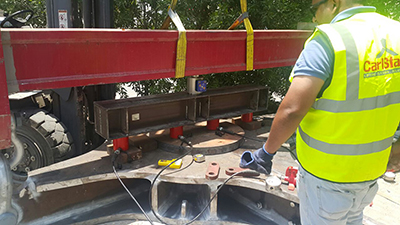

- Lifting bridges and other large installations
- Heavy equipment moving companies
- Used alongside Self-propelled modular trailer (SPMT) when moving heavy loads
- 2 year warranty
- Complies with ASME B30.26
- Design validated by F.E.A.
SUPPLIED WITH THE FOLLOWING AS STANDARD
- AA Batteries
- Proof test certificate
- Operator Manual
- Carry/Storage Case
Compression load cell specifications
|Battery Type||Loadcell 4 x AA Alkaline|
|Battery Life||Loadcell 1200hrs continuous|
|Operating Temp||-10 to +50 °C|
|14 to 158˚F|
|Accuracy||+/- 0.3% of applied load|
|Range||700 metres (100m if Bluetooth)|
|2300 feet (328ft if Bluetooth)|
|Data Rate||3Hz ( Configurable to 200 Hz)|

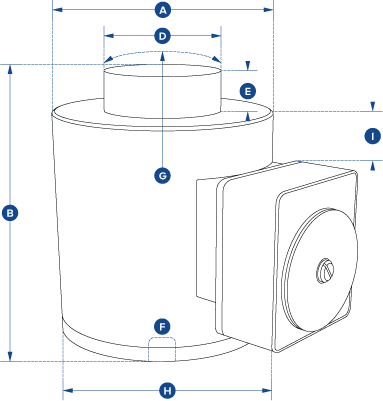

|Dimension F||M18 x 2.5||M18 x 2.5||M18 x 2.5||M20 x 2.5||M20 x 2.5||M20 x 2.5||M20 x 2.5||M20 x 2.5||M30x3.5|
|M18 x 2.5||M18 x 2.5||M18 x 2.5||M20 x 2.5||M20 x 2.5||M20 x 2.5||M20 x 2.5||M20 x 2.5||M30x3.5|
