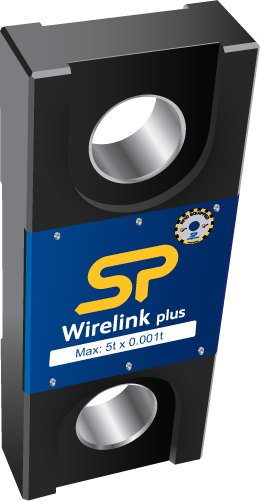

Wirelink Plus | Tension Load Cell / Digital Dynamometer

Non-indicating version of the Loadlink plus loadcell / digital dynamometer.
Requires connection to our Handheld plus
or use with optional analogue output for PLC interfacing etc.

Part Number	Description
ICA1	3 wire 0-10v analogue output
ICA2	3 wire 0-5v analogue output
ICA3	4 wire +/- 10v analogue output
ICA4	3 wire 4-20mA analogue output
ICA5	2 wire 4-20mA analogue output

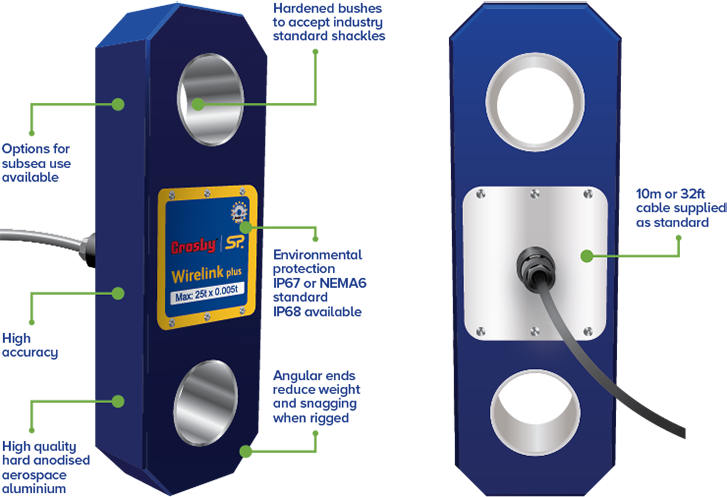

Wirelink Plus features & benefits:

Constructed from lightweight aerospace aluminium
Large range of capacities
High Accuracy

Available with analogue output
Waterproof
Lightweight

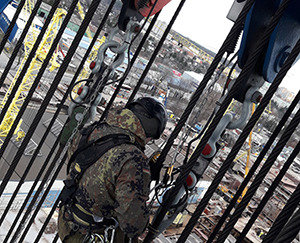

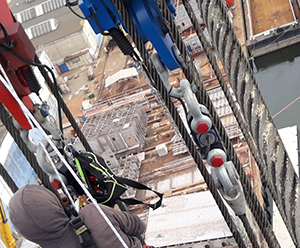

Wirelink Plus applications:

Low cost monitoring solution | Interfacing to other manufacturers equipment | Tensile test machines | Crash barrier testing

All Wirelink Plus load cells are suppled with the following as standard:
		10 Metres / 32 Feet Cable Proof test certificate Operator Manual Carry/Storage Case RFID Tagged

Specifications

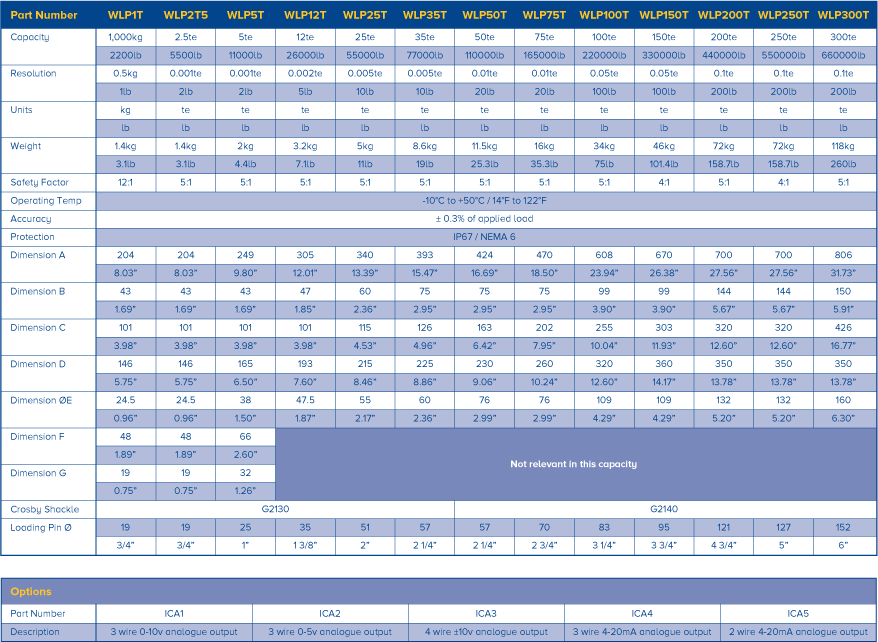

Wirelink Plus Load Cell - Specifications

Metric Dimensions = millimetres (mm)

Part Number	WLP1T	WLP2T5	WLP5T	WLP12T	WLP25T	WLP35T	WLP50T	WLP75T	WLP100T	WLP150T	WLP200T	WLP250T	WLP300T
Capacity	1000kg	2.5te	5te	12te	25te	35te	50te	75te	100te	150te	200te	250te	300te
Resolution	0.5kg	0.001te	0.001te	0.002te	0.005te	0.005te	0.01te	0.01te	0.05te	0.05te	0.1te	0.1te	0.1te
Weight	1.5kg	1.5kg	2.2kg	3.5kg	5.2kg	9kg	11kg	18kg	37kg	51kg	80kg	80kg	132kg
Safety Factor	12.1	5:1	5:1	5:1	5:1	5:1	5:1	5:1	4:1	4:1	5:1	4:1	4:1
Protection	IP65
Operating Temp	-10 to 50c
Accuracy	+/- 0.3% of applied load
Dim A	204	204	249	305	340	393	424	470	608	670	700	700	806
Dim B	43	43	43	47	60	75	75	75	99	99	144	144	150
Dim C	101	101	101	101	115	126	163	202	255	303	320	320	426
Dim D	146	146	165	193	215	225	230	260	320	360	350	350	350
Dim E	24.5	24.5	38	47.5	55	60	76	76	109	109	132	132	160
Dim F	48	48	66
Dim G	19	19	32
Crosby Shackle	G209 or G210						G2130 or G2140
Loading Pin Ø	19	19	25	35	51	57	57	70	83	95	121	127	152

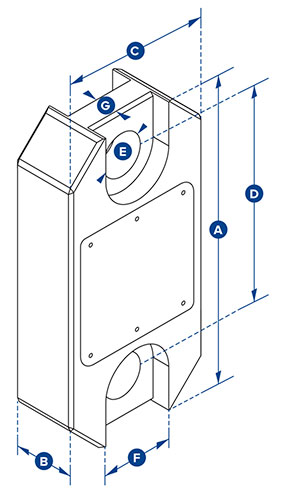

wirelink plus load cell dynamometer dimensions Imperial Dimensions = inches

Part Number	WLP1TU	WLP2T5U	WLP5TU	WLP12TU	WLP25TU	WLP35TU	WLP50TU	WLP75TU	WLP100TU	WLP150TU	WLP200TU	WLP250TU	WLP300TU
Capacity	2200lb	5500lb	11000lb	26000lb	55000lb	77000lb	110000lb	165000lb	220000lb	330000lb	440000lb	550000lb	660000lb
Resolution	1lb	2lb	2lb	5lb	10lb	10lb	20lb	20lb	100lb	100lb	200lb	200lb	200lb
Weight	3.3lb	3.3lb	4.8lb	7.7lb	11.5lb	20lb	24lb	40lb	82lb	112lb	176lb	176lb	290lb
Safety Factor	12.1	5:1	5:1	5:1	5:1	5:1	5:1	5:1	4:1	4:1	5:1	4:1	4:1
Protection	NEMA 4X
Operating Temp	14˚F to 122˚F
Accuracy	+/- 0.3% of applied load
Dim A	8.03	8.03	9.80	12.01	13.39	15.47	16.69	18.50	23.94	26.38	27.56	27.56	31.73
Dim B	1.69	1.69	1.69	1.85	2.36	2.95	2.95	2.95	3.90	3.90	5.67	5.67	5.91
Dim C	3.98	3.98	3.98	3.98	4.53	4.96	6.42	7.95	10.04	11.93	12.60	12.60	16.77
Dim D	5.75	5.75	6.50	7.60	8.46	8.86	9.06	10.24	12.60	14.17	13.78	13.78	13.78
Dim E	0.96	0.96	1.50	1.87	2.17	2.36	2.99	2.99	4.29	4.29	5.20	5.20	6.30
Dim F	1.89	1.89	2.60
Dim G	0.75	0.75	1.26
Crosby Shackle	G209 or G210						G2130 or G2140
Loading Pin Ø	3/4"	3/4"	1"	1 3/8"	2"	2 1/4"	2 1/4"	2 3/4"	3 1/4"	3 3/4"	4 3/4"	5"	6"

Accessories

Wirelink Plus Load Cell - Applications

Desktop Controller datalogging software package.
Handheld Plus features tare, peak hold and four units of measure kg,t,kN & lbs.

Handheld plus	Desktop Controller Datalogging Software

Optional output for Wirelink Plus load cells

Part Number	Description
ICA1	3 wire 0-10v analogue output
ICA2	3 wire 0-5v analogue output
ICA3	4 wire +/- 10v analogue output
ICA4	3 wire 4-20mA analogue output
ICA5	2 wire 4-20mA analogue output
