Loadlink Plus | Tension Load Cell/Digital Dynamometer
Known worldwide as the original electronic force measurement device to feature an integral display, the Load Link Plus tension load cell / digital dynamometer has been in production since 1979. Over the years the line has been expanded and the Loadlink Plus load cell is now used on a daily basis for load monitoring and heavy lifts ranging in capacity from 1t to 500t, by a variety of industrial and commercial industries to include manufacturing, transportation, agriculture, oil and gas, utilities, aerospace and clean energy.

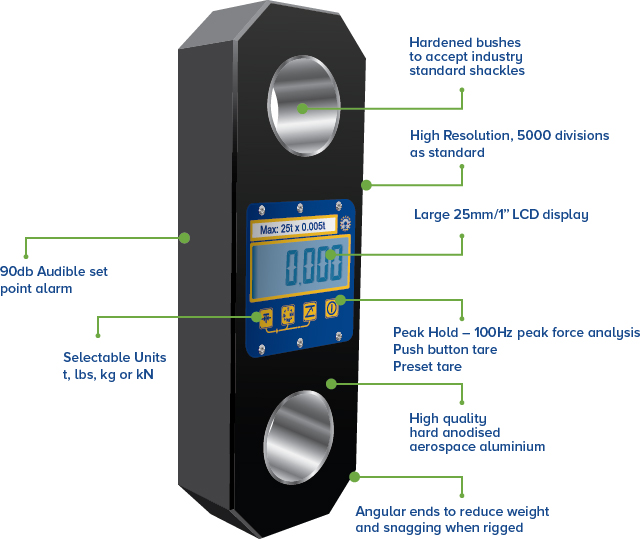

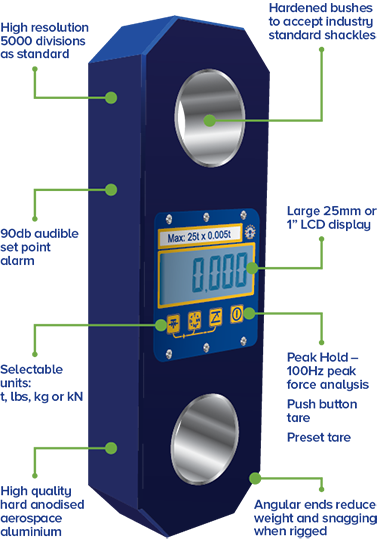

Loadlink Plus features & benefits:
- Large LCD Display
- High Accuracy
- Selectable Units
- High Resolution
|
- Peak Hold
- Compact Size
- Tare
- Lightweight
|
- Preset Tare
- Overload Counter
- Audible Set Point Alarm
- RS-485 Serial Output
|
This latest version of the well-known product possesses advanced features and benefits providing solutions for todays complicated load test and force measurement needs.
Constructed of high-quality aircraft grade aluminum, Straightpoints advanced internal design structure allows the product to set the industry standard with an unmatched strength to weight ratio. Straightpoint link style load cell dynamometers are on average 30% lighter than our closest competitor with the same safety rating.
In all, the rugged lightweight design, corrosion resistant finish, advanced electronics and full feature display make the Loadlink Plus a force to reckon with in the force measurement arena.
Loadlink Plus applications:
Testing | Overhead Weighing | Loadcell Rental | Bollard Pulling | Tug Testing | Cable Tensioning | Heavy Lift
All Loadlink Plus load cells are suppled with the following as standard:
|
|
|
- Proof test certificate
- Operator Manual
- Carry/Storage Case
- RFID Tagged
|
Specifications
Loadlink Plus Load Cell - Specifications
Metric Dimensions = millimetres (mm)
| Part Number
|
LLP1T
|
LLP2T5
|
LLP5T
|
LLP12T
|
LLP25T
|
LLP35T
|
LLP50T
|
LLP75T
|
LLP100T
|
LLP150T
|
LLP200T
|
LLP250T
|
LLP300T
|
| Capacity
|
1000kg
|
2.5te
|
5te
|
12te
|
25te
|
35te
|
50te
|
75te
|
100te
|
150te
|
200te
|
250te
|
300te
|
| Resolution
|
0.5kg
|
0.001te
|
0.001te
|
0.002te
|
0.005te
|
0.005te
|
0.01te
|
0.01te
|
0.05te
|
0.05te
|
0.1te
|
0.1te
|
0.1te
|
| Units
|
te, lbs, kg & kN
|
| Weight
|
1.5kg
|
1.5kg
|
2.2kg
|
3.5kg
|
5.2kg
|
9kg
|
11kg
|
18kg
|
37kg
|
51kg
|
80kg
|
80kg
|
132kg
|
| Safety Factor
|
12.1
|
5:1
|
5:1
|
5:1
|
5:1
|
5:1
|
5:1
|
5:1
|
4:1
|
4:1
|
5:1
|
4:1
|
4:1
|
| Protection
|
IP65
|
| Battery Type
|
9v PP3
|
| Battery Life
|
80 hours continuous
|
| Display Type
|
6 digit 25mm LCD
|
| Operating Temp
|
-10 to +50c
|
| Accuracy
|
+/- 0.3% of applied load
|
| Dimension A
|
204
|
204
|
249
|
305
|
340
|
393
|
424
|
470
|
608
|
670
|
700
|
700
|
806
|
| Dimension B
|
43
|
43
|
43
|
47
|
60
|
75
|
75
|
75
|
99
|
99
|
144
|
144
|
150
|
| Dimension C
|
101
|
101
|
101
|
101
|
115
|
126
|
163
|
202
|
255
|
303
|
320
|
320
|
426
|
| Dimension D
|
146
|
146
|
165
|
193
|
215
|
225
|
230
|
260
|
320
|
360
|
350
|
350
|
350
|
| Dimension E
|
24.5
|
24.5
|
38
|
47.5
|
55
|
60
|
76
|
76
|
109
|
109
|
132
|
132
|
160
|
| Dimension F
|
48
|
48
|
66
|
|
|
|
|
|
|
|
|
|
|
| Dimension G
|
19
|
19
|
32
|
|
|
|
|
|
|
|
|
|
|
| Crosby Shackle
|
G209 or G210
|
G2130 or G2140
|
| Loading Pin Ø
|
19
|
19
|
25
|
35
|
51
|
57
|
57
|
70
|
83
|
95
|
121
|
127
|
152
|
Imperial Dimensions = inches
| Part Number
|
LLP1TU
|
LLP2T5U
|
LLP5TU
|
LLP12TU
|
LLP25TU
|
LLP35TU
|
LLP50TU
|
LLP75TU
|
LLP100TU
|
LLP150TU
|
LLP200TU
|
LLP250TU
|
LLP300TU
|
| Capacity
|
2200lb
|
5500lb
|
11000lb
|
26000lb
|
55000lb
|
77000lb
|
110000lb
|
165000lb
|
220000lb
|
330000lb
|
440000lb
|
550000lb
|
660000lb
|
| Resolution
|
1lb
|
2lb
|
2lb
|
5lb
|
10lb
|
10lb
|
20lb
|
20lb
|
100lb
|
100lb
|
200lb
|
200lb
|
200lb
|
| Units
|
lbs, te, kN &kg
|
| Weight
|
3.3lb
|
3.3lb
|
4.8lb
|
7.7lb
|
11.5lb
|
20lb
|
24lb
|
40lb
|
82lb
|
112lb
|
176lb
|
176lb
|
290lb
|
| Safety Factor
|
12.1
|
5:1
|
5:1
|
5:1
|
5:1
|
5:1
|
5:1
|
5:1
|
4:1
|
4:1
|
5:1
|
4:1
|
4:1
|
| Protection
|
NEMA 4X
|
| Battery Type
|
9v
|
| Battery Life
|
80 hours continuous
|
| Display Type
|
6 digit 1" LCD
|
| Operating Temp
|
14 to 122F
|
| Accuracy
|
+/- 0.3% of applied load
|
| Dimension A
|
8.03
|
8.03
|
9.80
|
12.01
|
13.39
|
15.47
|
16.69
|
18.50
|
23.94
|
26.38
|
27.56
|
27.56
|
31.73
|
| Dimension B
|
1.69
|
1.69
|
1.69
|
1.85
|
2.36
|
2.95
|
2.95
|
2.95
|
3.90
|
3.90
|
5.67
|
5.67
|
5.91
|
| Dimension C
|
3.98
|
3.98
|
3.98
|
3.98
|
4.53
|
4.96
|
6.42
|
7.95
|
10.04
|
11.93
|
12.60
|
12.60
|
16.77
|
| Dimension D
|
5.75
|
5.75
|
6.50
|
7.60
|
8.46
|
8.86
|
9.06
|
10.24
|
12.60
|
14.17
|
13.78
|
13.78
|
13.78
|
| Dimension E
|
0.96
|
0.96
|
1.50
|
1.87
|
2.17
|
2.36
|
2.99
|
2.99
|
4.29
|
4.29
|
5.20
|
5.20
|
6.30
|
| Dimension F
|
1.89
|
1.89
|
2.60
|
|
|
|
|
|
|
|
|
|
|
| Dimension G
|
0.75
|
0.75
|
1.26
|
|
|
|
|
|
|
|
|
|
|
| Crosby Shackle
|
G209 or G210
|
G2130 or G2140
|
| Loading Pin Ø
|
3/4"
|
3/4"
|
1"
|
1 3/8"
|
2"
|
2 1/4"
|
2 1/4"
|
2 3/4"
|
3 1/4"
|
3 3/4"
|
4 3/4"
|
5"
|
6"
|
