Shackle Load Cell

Description

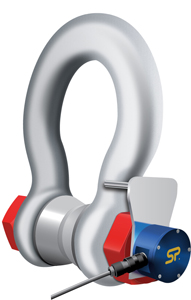

Our range of shackle load cells are simple to install and range from 1 - 400 tonne capacity.
Constructed from high tensile carbon steel.
Sealed to IP65 standards, the output cable is protected with armoured hose.
Proof tested to 150% of normal rated load.

Supplied with load centralising bobin to fit on load pin.

Requires connection to Handheld plus or other loadcell instrumentation.

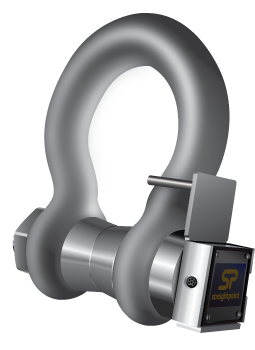

Telemetry Loadshackles are available, please contact us for more information.

Applications

Permanent installations such as cable tension monitoring.

Metric Specifications

Part Number	SLB 1T	SLB 3.25T	SLB 6.5T	SLB 12T	SLB 17T	SLB 25T	SLB 55T	SLB 85T	SLB 120T	SLB 200T	SLB 300T	SLB 400T
Capacity	1t	3.25t	6.5t	12t	17t	25t	55t	85t	120t	200t	300t	400t
Resolution	0.001t	0.005t	0.005t	0.01t	0.02t	0.02t	0.05t	0.05t	0.1t	0.2t	0.5t	0.5t
Weight	2kg	2.8kg	3.2kg	8kg	12kg	18kg	25kg	45kg	85kg	215kg	364kg	520kg
Protection	IP65 std or IP67 for submersion to 30m as option
Safety Factor	300% of rated load
Op Temp	-20 - 70c
Accuracy	+/- 1%

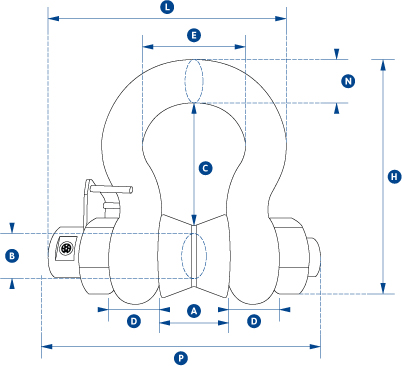

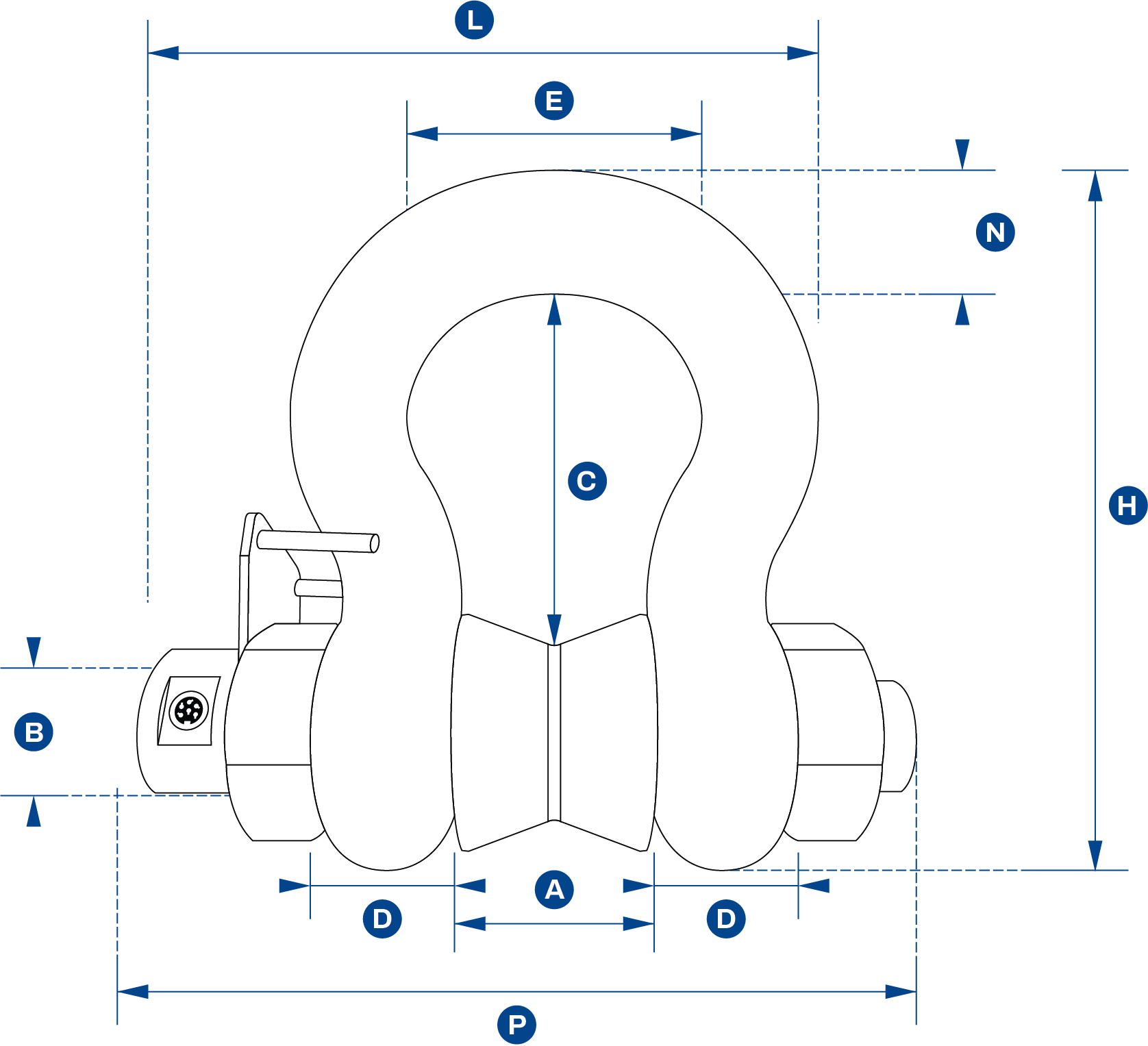

Dims A (mm)	16.8	26.9	36.6	51.5	60.5	73	82.5	105	127	184	213	210
Dims B (mm)	11.2	19.1	25.4	35.1	41.4	51	57	70	82.5	121	152	178
Dims C (mm)	36.6	60.5	84	119	146	178	197	267	330	397	495	572
Dims D (mm)	9.65	16	22.4	31.8	38.1	44.5	51	66.5	76	95.5	121	165
Dims E (mm)	26.2	42.9	58	82.5	98.5	127	164	184	200	279	330	330
Dims F (mm)	23.1	38.1	53	76	92	106	122	145	165	267	305	356
Dims H (mm)	63	106	148	210	254	313	348	453	546	743	895	1022
Dims L (mm)	45.2	74.5	102	146	175	225	253	327	365	533	635	660
Dims N (mm)	9.65	17.5	24.6	35.1	41.1	57	61	79	92	152	172	184
Dims P (mm)	55	89.5	120	165	196	230	264	344	419	521	618	710

US Specifications

Part Number	SLB 1T	SLB 3.25T	SLB 6.5T	SLB 12T	SLB 17T	SLB 25T	SLB 55T	SLB 85T	SLB 120T	SLB 200T	SLB 300T	SLB 400T
Capacity	2200lb	7150lb	14300lb	26400lb	37400lb	55000lb	60ton	93ton	132ton	220ton	330ton	440ton
Resolution	2lb	10lb	10lb	20lb	50lb	50lb	0.05t	0.05t	0.1t	0.2t	0.5t	0.5t
Weight	4.4lb	6.16lb	7lb	17.6lb	26.4lb	40lb	55lb	99lb	187lb	473lb	801lb	1144lb
Protection	NEMA 4X / IP65
Safety Factor	300% of rated load
Op Temp	-4˚F to 158˚F
Accuracy	+/- 1%
Dim A	0.66	1.06	1.44	2.03	2.38	2.87	3.25	4.13	5.00	7.24	8.39	8.27
Dim B	0.44	0.75	1.00	1.38	1.63	2.01	2.24	2.76	3.25	4.76	5.98	7.01
Dim C	1.44	2.38	3.31	4.69	5.75	7.01	7.76	10.51	12.99	15.63	19.49	22.52
Dim D	0.38	0.63	0.88	1.25	1.50	1.75	2.01	2.62	2.99	3.76	4.76	6.50
Dim E	1.03	1.69	2.28	3.25	3.88	5.00	6.46	7.24	7.87	10.98	12.99	12.99
Dim F	0.91	1.50	2.09	2.99	3.62	4.17	4.80	5.71	6.50	10.51	12.01	14.02
Dim H	2.48	4.17	5.83	8.27	10.00	12.32	13.70	17.83	21.50	29.25	35.24	40.24
Dim L	1.78	2.93	4.02	5.75	6.89	8.86	9.96	12.87	14.37	20.98	25.00	25.98
Dim N	0.38	0.69	0.97	1.38	1.62	2.24	2.40	3.11	3.62	5.98	6.77	7.24
Dim P	2.17	3.52	4.72	6.50	7.72	9.06	10.39	13.54	16.50	20.51	24.33	27.95

Downloads

Datasheet

Options

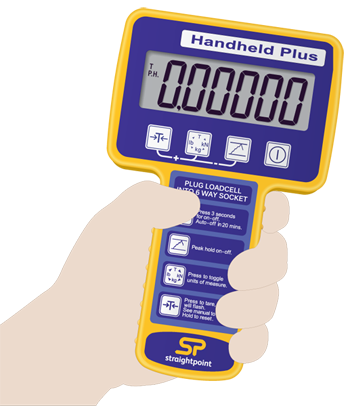

Handheld plus - This display will connect to the Loadlink plus, Miniweigher plus, Loadblock plus as a secondary display and controller. It will also connect to our range of non-indicating loadcells and loadshackles. As an option we can fit an RS485 output to enable connection to our Desktop Controller software package. Powered by a single PP3 battery, the Handheld plus features tare, peak hold and four units of measure (kg, t, kN & lbs)
