Loadblock Plus - Compression Loadcell

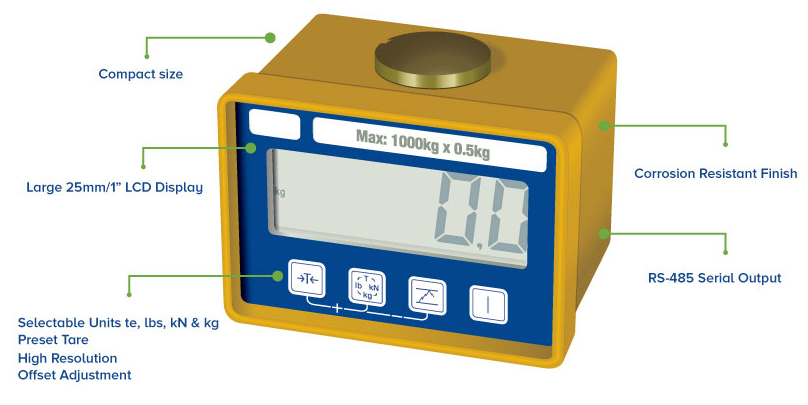

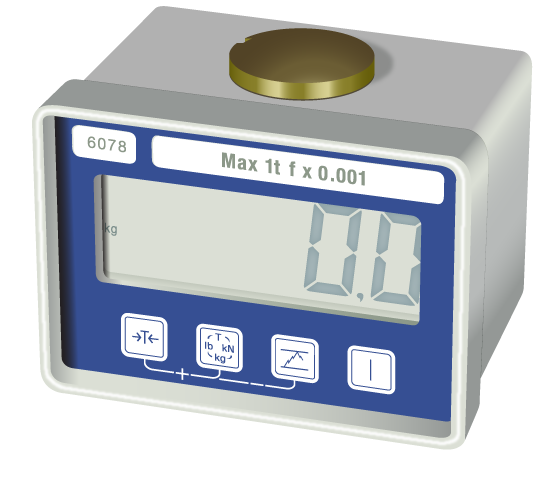

LOADBLOCK PLUS - Compression Loadcell

Description

With integral display, used in many testing and load monitoring applications worldwide.

All Load Block Plus have push button control for: tare, units (kg, lbs, kN & tonnes) peak hold and offset adjustment.
Remote output buffer is fitted as standard, this will allow connection to our range of accessories.

All Load Block Plus are fitted with an adjustable setpoint audible alarm as standard.

Load Block Plus.......

Applications



Pre-lift weight and centre of gravity calculations for large plant and equipment.

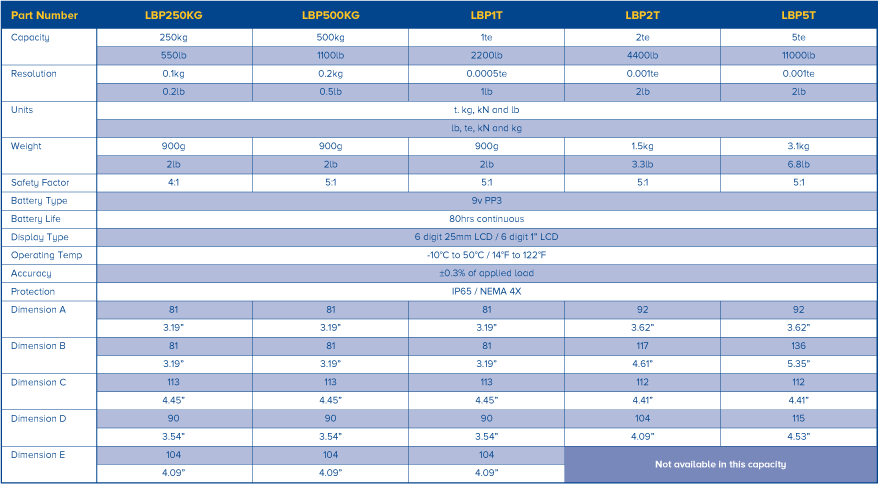

Metric Specifications

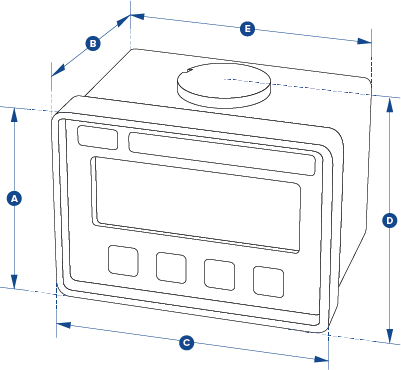

lbpdims

Part Number LBP250KG LBP500KG LBP/T LBP2T LBP5T
Capacity 250kg 500kg 1t 2t 5t
Resolution 0.1kg 0.2kg 0.0005t 0.001t 0.001t
Weight 900g 900g 900g 1.5kg 3.1kg
Safety Factor 4:1 5:1 5:1 5:1 5:1
Protection IP65
Battery Type 9v PP3
Battery Life 80hrs Continuous
Display Type 25mm LCD
Op Temp -10c to +50c
Accuracy +/- 0.3%
Dims A 81 81 81 92 92
Dims B 81 81 81 117 136
Dims C 103 103 103 112 112
Dims D 90 90 90 104 115
Dims E 104 104 104

US Specifications


lbpdims
Part Number LBP250KG LBP500KG LBP1T LBP2T LBP5T
Capacity 550lb 1100lb 2200lb 4400lb 11000lb
Resolution 0.2lb 0.5lb 1lb 2lb 2lb
Weight 2lb 2lb 2lb 3.3lb 6.8lb
Safety Factor 4:1 5:1 5:1 5:1 5:1
Protection NEMA4 / IP65
Battery Type 9v PP3
Battery Life 80hrs continuous
Display Type 1" LCD
Operating Temp 14˚F to 122˚F
Accuracy +/- 0.3%
Dimension A 3.19 3.19 3.19 3.62 3.62
Dimension B 3.19 3.19 3.19 4.61 5.35
Dimension C 4.06 4.06 4.06 4.41 4.41
Dimension D 3.54 3.54 3.54 4.09 4.53
Dimension E 4.09 4.09 4.09

Options



Desktop Controller Software


Handheld plus - This display will connect to the Loadlink plus, Miniweigher plus, Loadblock plus as a secondary display and controller. It will also connect to our range of non-indicating loadcells and loadshackles. As an option we can fit an RS485 output to enable connection to our Desktop Controller software package. Powered by a single PP3 battery, the Handheld plus features tare, peak hold and four units of measure (kg, t, kN & lbs)



Handheld Plus
