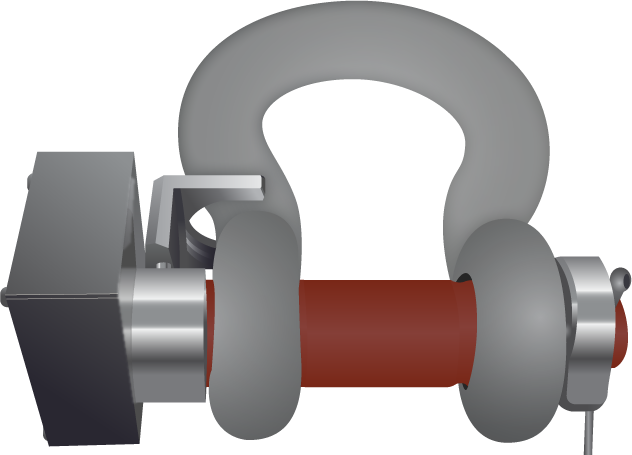

Wireless Shackle Load Cell - Wireless Loadshackle

Wireless load shackleATEX/IECEx Option Available
Bluetooth capable

Straightpoint’s Wireless Loadshackle provides the perfect solution to limited headroom applications. Each Wireless Loadshackle is proof tested, then equipped with a hard anodised aluminium electronics enclosure. Contained within this aluminium enclosure is a new internal chassis providing IP67/NEMA6 environmental protection even with the battery cover plate missing. Featuring industry leading wireless technology and range of 700m/2300ft, the Wireless Loadshackle is supplied with an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilising the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error free transmission of both static weight and dynamic load to a wireless handheld controller or wireless Windows PC data logging software package. Straightpoint’s wireless data logging software allows for simultaneous control, display and real time data logging of up to 100 Straightpoint telemetry load cells. Logged data is captured in a .csv file format and opens in MS Excel providing easy visual presentation, analysis of logged data, and simple test certificate generation.

The Wireless Loadshackle may also be used with Straightpoint’s SW-PTP software package allowing the operator to perform load tests at a safe distance and generate real time test certificates on site. Straightpoint’s Wireless Loadshackle utilises easily sourced AA alkaline batteries and features advanced circuitry designed to protect the unit from damage associated with incorrectly installed batteries. This advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement. Straightpoint’s huge range of tooling allows the engineers to calibrate in shackle for extra accuracy unlike many other load cell manufacturers.

A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII serial communications protocol) outputs.

This email address is being protected from spambots. You need JavaScript enabled to view it.There is no better choice than Straightpoint’s Wireless Loadshackle for limited headroom applications.



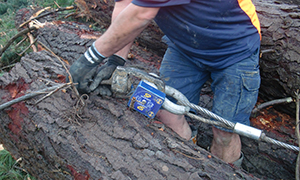

shackle load cell monitoring load

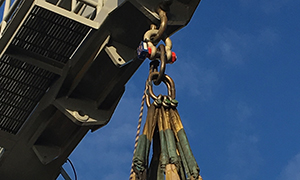

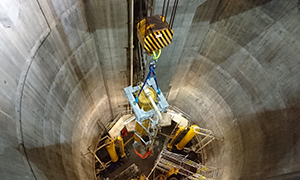

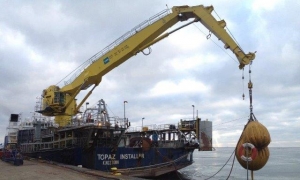

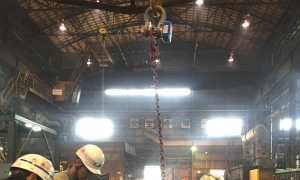

shackle load cell used with water weight bagsload shackle used on stage rigging

Overview

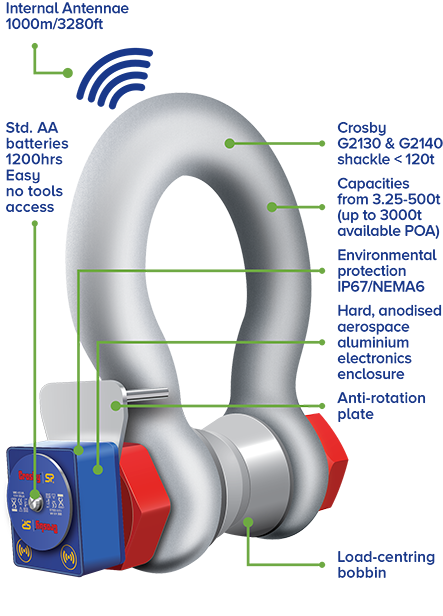

FEATURES AND BENEFITS
  • Proprietary 2.4 GHz Wireless
  • Error free data transmission
  • Industry Leading Wireless Range of 700m/2300ftUnrivalled Resolution
  • Environmentally sealed to IP67/NEMA6
  • Unrivalled resolution
  • Unmatched Battery Life of 1200hrs
  • Low headroom solution
  • Manufactured using leading brand shackles
  • Each WLS is supplied with a load-centring bobbin
  • Design validated by F.E.A.
  • APPLICATIONS
  • Under Hook Crane Weighing
  • Aircraft Manufacturing and Repair
  • Heavy Lift
  • Rigging
  • Escalator Comb Impact Testing
  • Wire Rope and Cable Tension Monitoring
  • Structural Load Testing and Certification
  • Shipping & receiving weighing
  • Off Shore Mooring Anchor Setting
  • Crane and Hoist Calibration and Proof Load Testing
  • Manufacturing and Heavy Construction
  • Bollard pull testing and certification
  • Swing Stage

  • SUPPLIED WITH THE FOLLOWING AS STANDARD
  • Centralising bobbin
  • Proof test certificate
  • Operator Manual

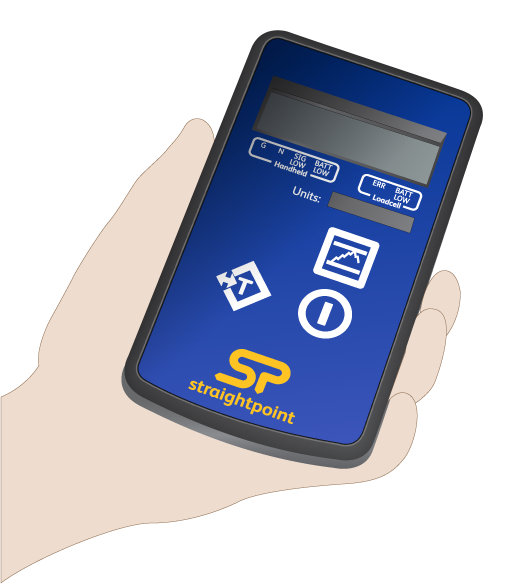

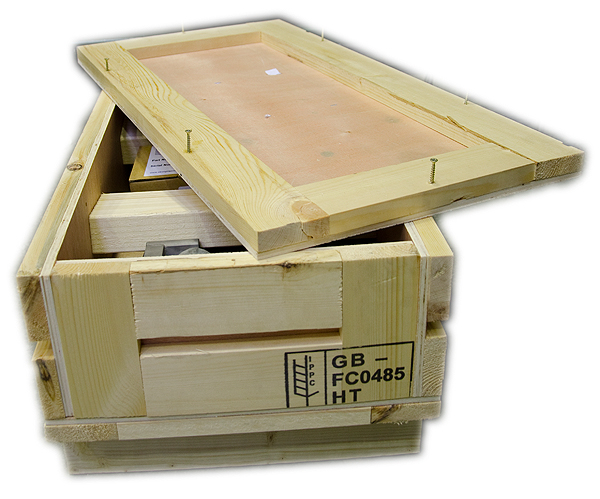

  • Carry/Storage Crate

  • Specifications

    Wireless Loadshackle specifications

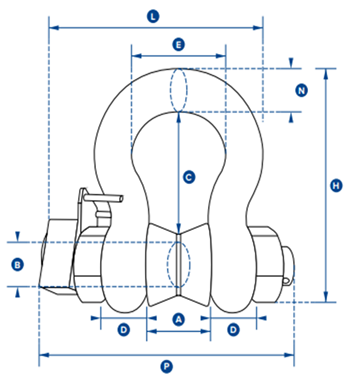

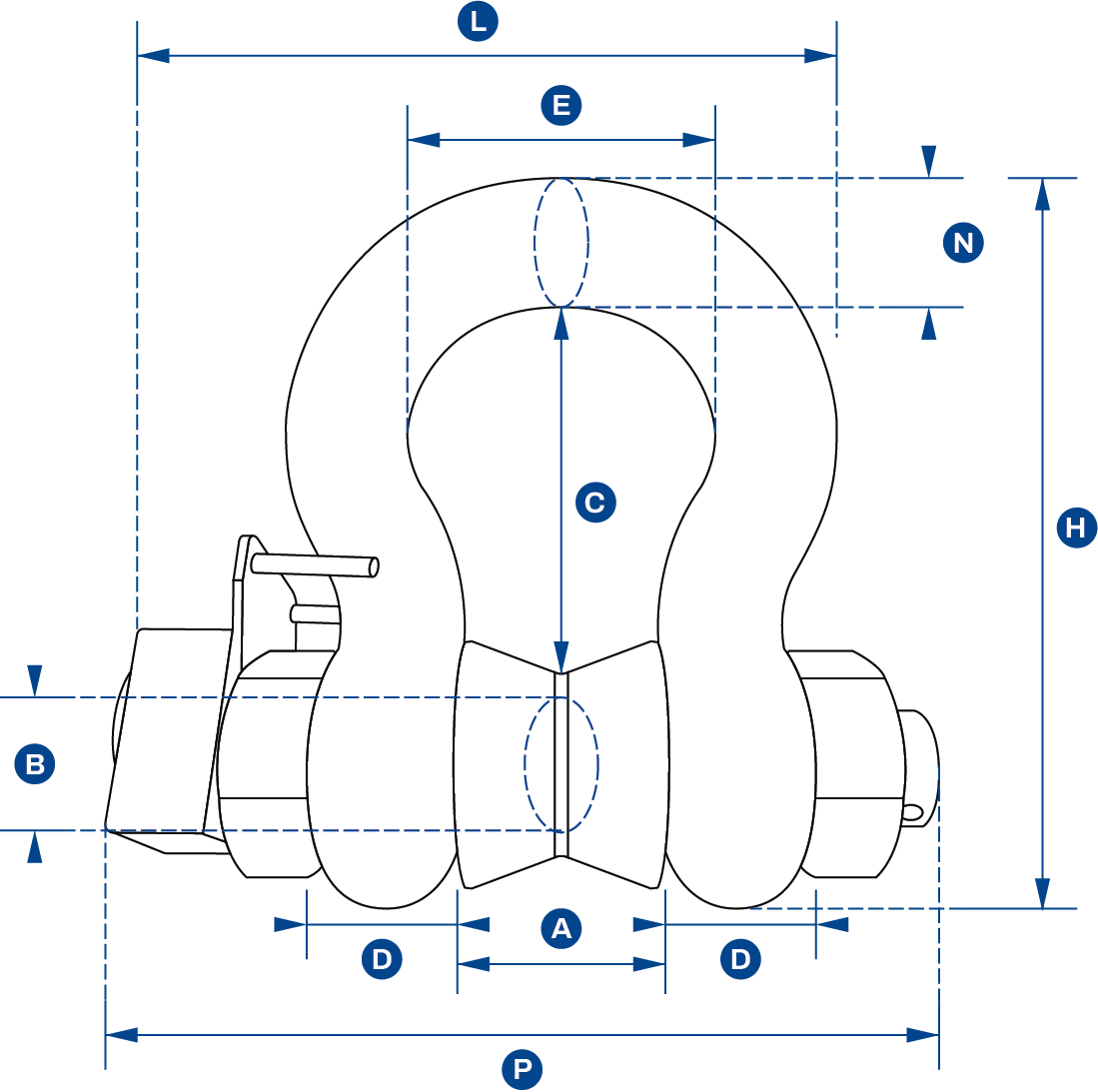

    loadshackle dimemsions

    wireless load shackle specifications

    Accessories

    Wireless Load Cell Accessories

    Our range of wireless accessories may be used with the load cells:
    Radiolink Plus, Compound Plus, Wireless Loadshackle and Wireless Compression Load Cell ranges.

    SW-OAM Wireless overload alarm modulewireless-symbolSW-OAM
    Wireless overload alarm module

    The SW-OAM is a wireless relay module featuring audio and visual warning indicators. The unit’s two set point alarms can be triggered from a single or summed group of up to eight Straightpoint wireless load cells. The SW-OAM is ideal as a Wireless Overload Detection System.
    Datasheet Download






    SW-A01i Wireless base station with analogue outputwireless-symbolSW-A01i
    Wireless base station with analogue output

    The SW-AO1i provides a configurable analog output for any single Straightpoint Wireless Load Cell and is ideal for integration to a PC, PLC or other Data Acquisition Systems. Housed in a NEMA 4 enclosure the output can be selected from pre-calibrated voltage and current ranges of 0-5vdc, +-5vdc, 0-10vdc, +-10vdc, 0-20mA, 4-20mA.
    Datasheet Download





    SW-SO Serial output ASCII string modulewireless-symbolSW-SO
    Serial output ASCII string module

    Ideal for integration to a PC, PLC or other device requiring a simple RS232 serial input, this module allows for a user defined ACII string which can include individual or summed data from up to eight Straightpoint Wireless Load Cells.
    Datasheet Download






    SW-RWT Rugged Tabletwireless-symbolSW-RWT
    Rugged Tablet

    The SW-RWT tablet is the latest generation fully-rugged tablets. Featuring an array of integrated
    options, and a sleek, sophisticated design, the SW-RWT will change the way you look at tablets. With a MIL-STD-810G rating and Windows® 7 Pro, the SW-RWT can go from the boardroom to the work site
    without missing a beat.
    Datasheet Download






    SW-MWLC Multiple wireless load cell controller softwarewireless-symbolSW-MWLC
    Multiple wireless load cell controller software

    This software for Windows PC's allows up to 24 of our wireless loadcells to be viewed and logged cable free to a CSV file. You can configure the number of loadcells (max 24), and set extra channels to sum data or record peaks etc. These configurations can be saved and re-loaded at any time.
    Datasheet Download





    SW-SD Wireless slave displaywireless-symbolSW-SD
    Wireless slave display

    This 100mm (4”) scoreboard LED display is wireless and viewable for up to 150 ft. Perfect for installation on a crane gantry the unit operates on 110-240 VAC and display’s an individual load or summed load for up to eight Straightpoint Wireless devices.
    Datasheet Download






    SW-SB Wireless signal boosterwireless-symbolSW-SB
    Wireless signal booster

    The SW-SB signal booster/repeater module is battery operated and easily pairs to any Straightpoint Wireless device e.g. load cell, accessories, and software solutions within range, quickly increasing coverage and extending range.
    Datasheet Download






    SW-GW1  Wireless overload alarm modulewireless-symbolSW-GW1

    Modbus RTU/ASCII Gateway

    The SW-GW1 is a Modbus interface gateway that provides a simple interface allowing users to gather data from Straightpoint Wireless devices using either the standard Modbus RTU protocol or a simple ASCII protocol.
    Datasheet Download
