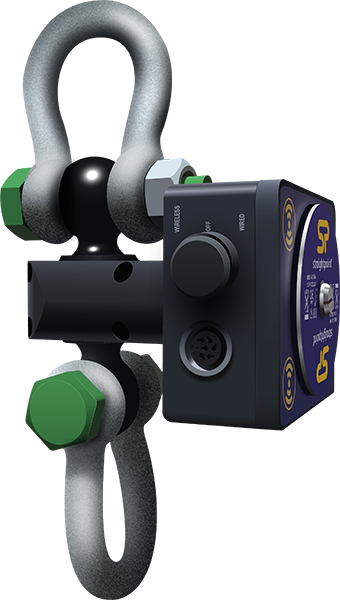

StageSafe is a 3t capacity load cell designed exclusively for the entertainment industry. Offering the accuracy of a load cell (0.3% of applied load) while retaining the best headroom possible (129mm/5”) its matt black finish blends in perfectly as part of the stage rigging ensuring there are no distractions from the stage.
StageSafe boasts a unique switching feature allowing it to be used as a wireless or wired load cell.
Wireless mode allows simple, cable-free load monitoring and overload protection across the entire rigging setup and up to 100 StageSafe load cells may be monitored and logged real time on a tablet or laptop using our SW-MWLC software.
Wired mode gives the reassurance and dependability of a cabled load cell meaning it is suitable for show-critical events. The data can then be relayed to a single handheld display or to a PLC or external controller via our range of accessories.
StageSafe shares the industry-leading specifications of other Straightpoint wireless products – 1200 hour battery life, 700 metre / 2300ft wireless range and accuracy you can depend on.
*Not supplied with shackles
- Compact and light - Perfect for stage riggers dealing with limited space
- Lighter, more compact cabling - Eliminates overly heavy and chunky cabling and gives stage riggers a more portable solution
- User configurable overload alarms in both wired and wireless modes - Easy to set on site for simple overload protection
- Constructed from high strength alloy steel - For best strength to size ratio
- Accepts standard shackles - StageSafe boasts a unique switching feature allowing it to be used as a wireless or wired load cell.
- Matt black finish - Disappears into stage rigging for zero audience distraction
- Unique wired and wireless capability via a simple toggle switch - One load cell for both show-critical events (wired) and more general weighing/monitoring (wireless)
- Lightweight and portable
- Applications where a wireless or wired solution is required
- 2 year warranty
- Design validated by F.E.A.
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Proof test certificate
- Operator Manual
- Carry/Storage Case
- RFID Tagged

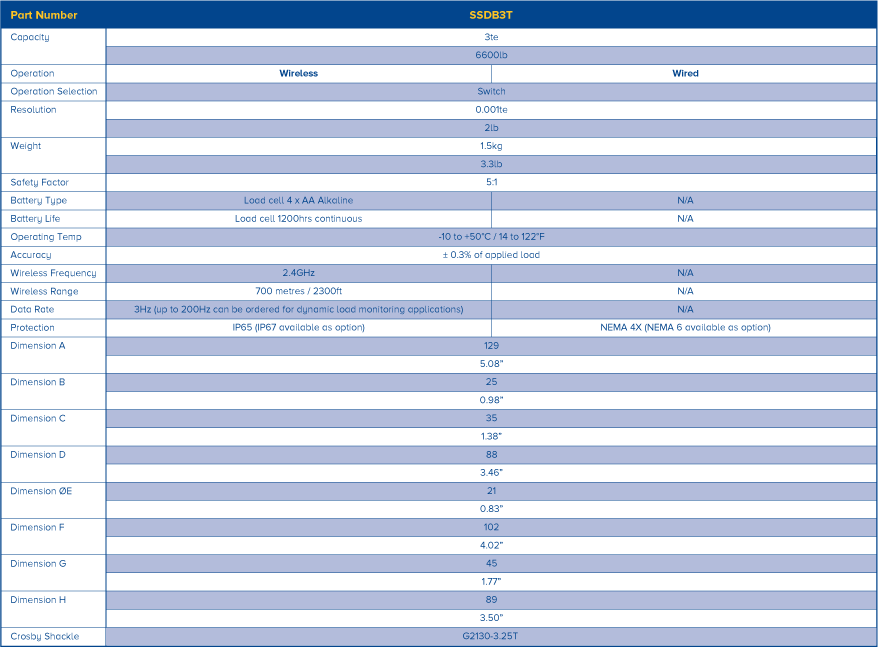

|Battery Type||Loadcell 4x AA Alkaline||NA|
|Battery Life||Loadcell 1200Hrs continuous||NA|
|Operating Temp||-10 to 50 deg C|
|14 to 122˚F|
|Accuracy||+/- 0.3 % of applied load|
|Wireless Range||700 metres (100m if Bluetooth)||NA|
|2300 feet (328ft if Bluetooth)||NA|
|Data Rate||3Hz up to 200Hz can be ordered for dynamic load monitoring applications||NA|
|Protection||IP65 (IP67 available as option)|
