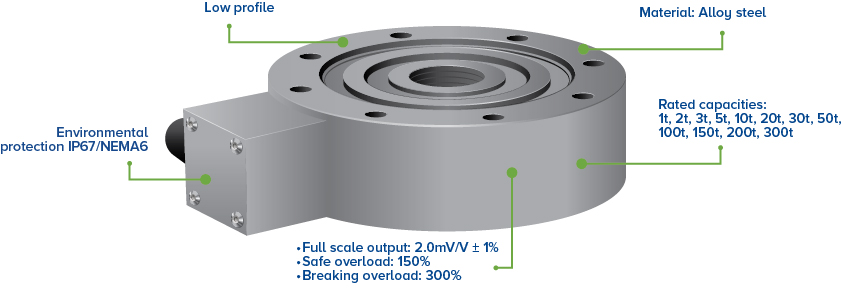

The SP pancake loadcell range provides a comprehensive force measurement solution for static and dynamic forces. It is ideal for a range of structural and industrial applications where space may be limited.
Constructed from nickel plated alloy steel it is manufactured with tapped holes allowing it to become an integral part of the structure they are load monitoring.
Frequently used for applications such as bolt tension monitoring, SPMT module weighing and OEM applications the SP pancake loadcell has rated capacities covering 1t to 300t with a safe overload of 150% and an ultimate strength of 300%.
FEATURES
- Material: Alloy steel
- Full scale output: 2.0mV/V ± 1%
- Safe overload: 150%
- Breaking overload: 300%
- IP Rating: IP67 / NEMA 6
- Low profile
FEATURES
- Rated capacities:
1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t,
100t, 150t, 200t, 300t
WARRANTY & ASSURANCE
SUPPLIED WITH THE FOLLOWING AS STANDARD
- 2 year warranty
- CE Certificate of Conformity
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Calibration & proof test certificate
- User manual
- Carry / transit case
