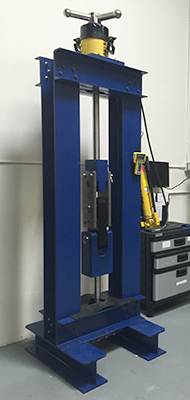

Straightpoint 55T Load Cell Test Machine developed to assist our global network of Straightpoint partners this test machine has been designed to allow local calibration of our range of Loadlink, shackle and crane weigher products up to 55T capacity.

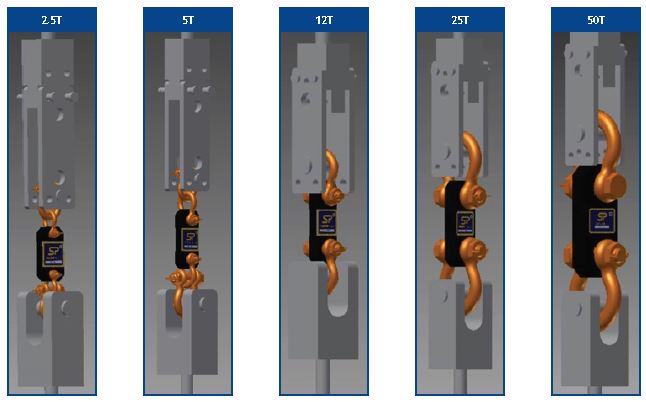

The wide range of tooling supplied with the test machine will also allow many other loadcell manufacturers products to be safely mounted and tested.
The test machine is fitted with a single acting 100 tonne hollow cylinder and a manual hand-pump with control valve allowing the operator to hold and control loads to within 1kg or 2lbs.
Supplied with reference load cell and our multifunction HHP digital display fitted.
Test machine can be supplied pre calibrated by Straightpoint or local calibration by third party can be performed.

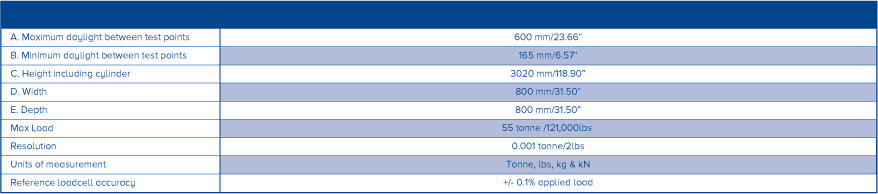

|A. Maximum daylight between test points||600mm/23.66''|
|B. Minimum daylight between test points||165mm/6.57''|
|C. Height including cylinder||3020mm/118.90''|
|D. Width (base)||800mm/31.50''|
|F. Width between the I beams||400mm/15.75''|
|Resolution||0.001 tonne/ 2lbs|
|Units of measurement||Tonne,lbs,kg & kN|
|Reference loadcell accuracy||'+/- 0.1% applied load|
