Wireless Low Headroom Link



English Afrikaans Arabic Azerbaijani Bulgarian Chinese (Traditional) Croatian Dutch Filipino Finnish French German Greek Italian Japanese Korean Latvian Lithuanian Norwegian Persian Polish Portuguese Romanian Russian Slovenian Spanish Swedish Thai Turkish
www.straightpoint.com

Wireless Low Headroom Load Cell

Wireless Low Headroom LinkNow available as a wireless product the Straightpoint range of Low Headroom Links are designed to provide accurate measurement of loads in the most challenging applications where headroom restrictions are a major factor. Constructed from high strength alloy steel and exposed to an array of testing during development, this impressive range of load cells is designed to work with industry standard shackles from manufacturers such as Crosby and Van Beest. Applications include weighing, lifting, force measurement and load monitoring of structures such as lighting trusses, hoist mountings and fly line tensioning.

The unique low headroom design combines the ability to lift loads with capacities up to 30t and features industry leading wireless technology and range of 700m or 2300ft. The versatile WDB is supplied with an update rate of 3 Hz and can be easily configured to run at industry leading speeds of
up to 200 Hz. Data is transmitted wirelessly utilising the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error free transmission of both static weight and dynamic loads to Straightpoint’s SW-HHP wireless handheld display or up to 100 WDB load cells may be connected to our SW-MWLC multi
load cell data logging software. Environmentally sealed in an aerospace aluminium enclosure and sealed to IP67 or NEMA 6 the WDB utilises easily sourced AA alkaline batteries and features advanced circuitry designed to protect the unit from damage associated with incorrectly installed batteries.

This email address is being protected from spambots. You need JavaScript enabled to view it.This advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement.




Overview

FEATURES AND BENEFITS
  • Low headroom
  • Range from 1t to 30t
  • Lightweight and portable
  • Accepts standard shackles
  • Constructed from high strength alloy steel
  • Proprietary 2.4 GHz wireless
  • Industry leading wireless range of 700m or 2300ft
  • Error free data transmission
  • Environmentally sealed to IP67 or NEMA 6
  • 90db Audible overload alarm
  • Unmatched battery life of 1200 hours
  • Internal antennae
  • Remote on-off
  • Design validated by F.E.A.
  • APPLICATIONS
  • Entertainment
  • Rigging
  • Low headroom applications
  • High accuracy suspended weighing

  • SUPPLIED WITH THE FOLLOWING AS STANDARD
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case
  • RFID Tagged

  • Specifications

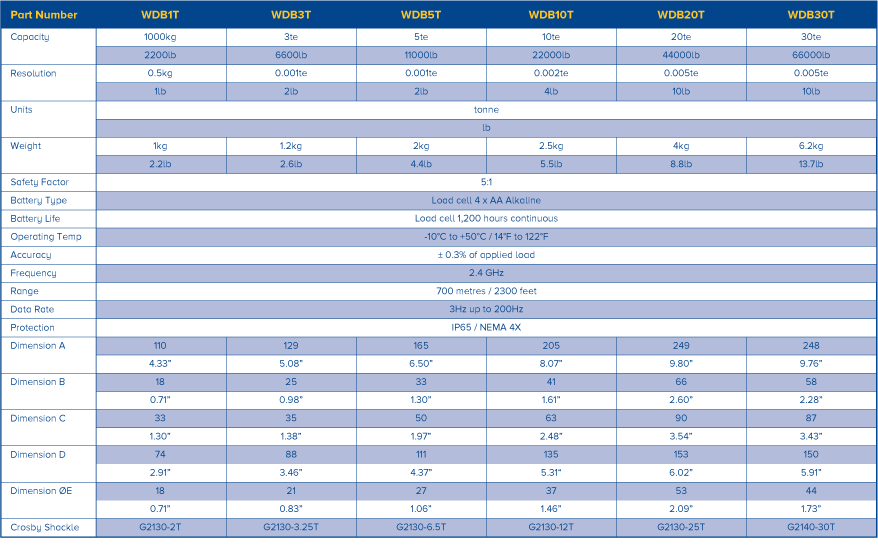

    Wireless Low Headroom Link specifications

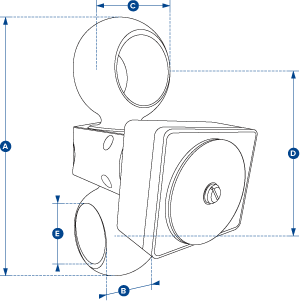

    wireless low head room link dimensions

    wireless lowheadroom specifications

    Accessories

    Wireless Load Cell Accessories

    Our range of wireless accessories may be used with the load cells:
    Radiolink Plus, Compound Plus, Wireless Loadshackle and Wireless Compression Load Cell ranges.

    SW-OAM Wireless overload alarm modulewireless-symbolSW-OAM
    Wireless overload alarm module

    The SW-OAM is a wireless relay module featuring audio and visual warning indicators. The unit’s two set point alarms can be triggered from a single or summed group of up to eight Straightpoint wireless load cells. The SW-OAM is ideal as a Wireless Overload Detection System.
    Datasheet Download






    SW-A01i Wireless base station with analogue outputwireless-symbolSW-A01i
    Wireless base station with analogue output

    The SW-AO1i provides a configurable analog output for any single Straightpoint Wireless Load Cell and is ideal for integration to a PC, PLC or other Data Acquisition Systems. Housed in a NEMA 4 enclosure the output can be selected from pre-calibrated voltage and current ranges of 0-5vdc, +-5vdc, 0-10vdc, +-10vdc, 0-20mA, 4-20mA.
    Datasheet Download





    SW-SO Serial output ASCII string modulewireless-symbolSW-SO
    Serial output ASCII string module

    Ideal for integration to a PC, PLC or other device requiring a simple RS232 serial input, this module allows for a user defined ACII string which can include individual or summed data from up to eight Straightpoint Wireless Load Cells.
    Datasheet Download






    SW-RWT Rugged Tabletwireless-symbolSW-RWT
    Rugged Tablet

    The SW-RWT tablet is the latest generation fully-rugged tablets. Featuring an array of integrated
    options, and a sleek, sophisticated design, the SW-RWT will change the way you look at tablets. With a MIL-STD-810G rating and Windows® 7 Pro, the SW-RWT can go from the boardroom to the work site
    without missing a beat.
    Datasheet Download






    SW-MWLC Multiple wireless load cell controller softwarewireless-symbolSW-MWLC
    Multiple wireless load cell controller software

    This software for Windows PC's allows up to 24 of our wireless loadcells to be viewed and logged cable free to a CSV file. You can configure the number of loadcells (max 24), and set extra channels to sum data or record peaks etc. These configurations can be saved and re-loaded at any time.
    Datasheet Download





    SW-SD Wireless slave displaywireless-symbolSW-SD
    Wireless slave display

    This 100mm (4”) scoreboard LED display is wireless and viewable for up to 150 ft. Perfect for installation on a crane gantry the unit operates on 110-240 VAC and display’s an individual load or summed load for up to eight Straightpoint Wireless devices.
    Datasheet Download






    SW-SB Wireless signal boosterwireless-symbolSW-SB
    Wireless signal booster

    The SW-SB signal booster/repeater module is battery operated and easily pairs to any Straightpoint Wireless device e.g. load cell, accessories, and software solutions within range, quickly increasing coverage and extending range.
    Datasheet Download






    SW-GW1  Wireless overload alarm modulewireless-symbolSW-GW1

    Modbus RTU/ASCII Gateway

    The SW-GW1 is a Modbus interface gateway that provides a simple interface allowing users to gather data from Straightpoint Wireless devices using either the standard Modbus RTU protocol or a simple ASCII protocol.
    Datasheet Download
