S Beam |Tension & Compression Load CellS-beam loadcell dynamometer

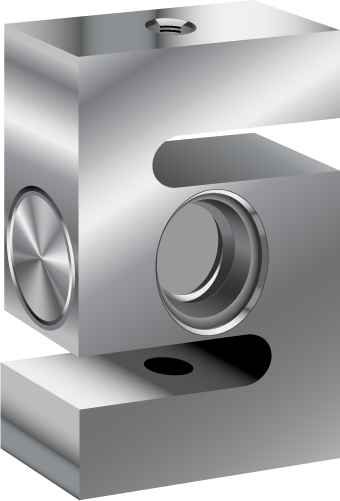

A range of stainless steel ‘S’ beam load cells from 100kg to 5t.
The Straightpoint ‘S’ Beam range of tension/compression load cells are suitable for smaller Silo, vessel and tank weighing applications or for building into OEM projects, testing machines etc.
Hardwired, they are supplied with a 10m/30ft cable and can be connected to the Straightpoint range of accessories such as the Handheld plus.
The 'S' beam loadcell can be used in both tension or compression and has a threaded hole at each end making it a very flexible solution.
Fitting options available including threaded bar, rod end bearing and eyebolts.
Email your enquiry to This email address is being protected from spambots. You need JavaScript enabled to view it.


S Beam Plus features & benefits:

  • Fully sealed up to IP65/NEMA4X
  • High Accuracy
  • High Endurance
  • Built in Overload Protection
  • High Capacity / Low Capacity
  • Compact designs available for tight environment
  • In both Tension and Compression
  • Single Point Construction

S Beam applications:

Force Measurement in tension & compression | Engine dynomometers | OEN Projects


All S Beam load cells are supplied with the following as standard:

loadcell-carry-case
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case

Specifications

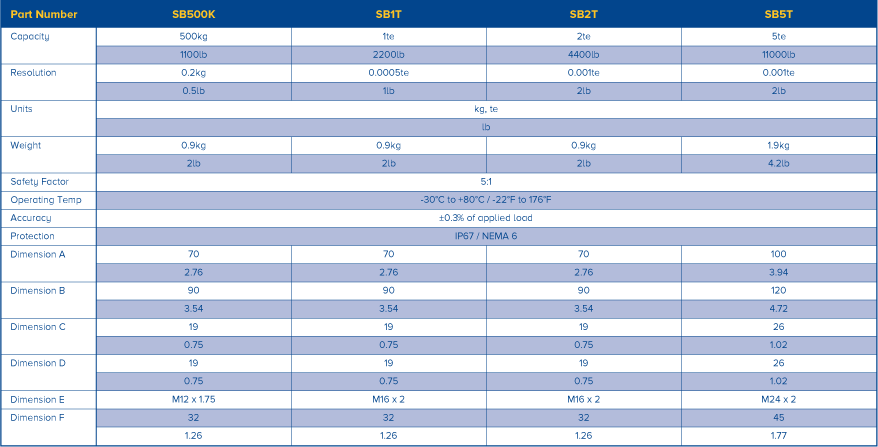

S Beam Load Cell - Specifications

Metric Dimensions = millimetres (mm)

Part Number SB500K SB1T SB2T SB5T
Capacity 500kg 1te 2te 5te
Resolution 0.2kg 0.0005te 0.001te 0.001te
Weight 0.9kg 0.9kg 0.9kg 1.9kg
Protection IP68
Safety Factor 5:1
Operating Temp -30c to +80 °C
Accuracy +/- 0.3% of applied load
Dimension A 70 70 70 100
Dimension B 90 90 90 120
Dimension C 19 19 19 26
Dimension D 19 19 19 26
Dimension E M12x1.75 M16x2 M16x2 M24x2
Dimension F 32 32 32 45


s-beam dimensions


Accessories


Wired Compression Load Cell - Accessories


loadcell-datalogging-softwareDesktop Controller datalogging software package.

The desktop controller datalogging software allows you to view and control (tare, peak hold etc) live loads on the PC screen and log the data into a .CSV file at a speed of up to 10Hz. You may also record a single reading into a Microsoft Word .doc (useful for test certificates etc)
The package comes in two formats:
Wireless Version Part Number: RDCP
For connection to Radiolink plus. Kit comprises:
1 x CD with software and manual.
1 x USB wireless transmit/receive module to plug into PC
Suitable for use on PC's running Windows 98, XP, Vista or Win7.

Cable version available on application.



loadcell-handheld-plus

Handheld Plus

Features tare, peak hold and four units of measure kg,t,kN & lbs.
Fully featured handheld display for all non-radio Straightpoint load cell and crane scale products.
Our hanndheld plus can also be connected to any other manufacturers load cell products.











External Amplifier

External Amplifier

SA-3420 external amplifier allows you to convert the output of any of our cabled loadcell products into a three wire 4-20mA analogue output. The weatherproof enclosure is fitted with stainless steel glands and is suitable for connection to a PLC, data logger or other instrumentation.
