Overview

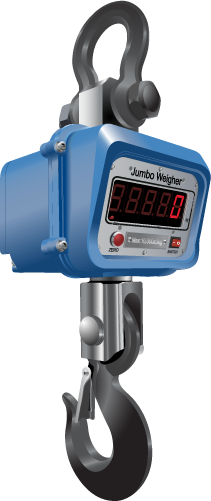

jumbo weigher crane scale 20 tonneJumbo Weigher | Crane Scalejumbo weigher crane scale 5 and 10 tonne

Available in capacities 5t, 10t and 20t (11,000lbs, 22,000lbs and 44000lbs).
A popular choice among steel service centers and other industrial manufactures, the Jumboweigher crane scale from Straightpoint offers a cost-effective alternative to its more expensive rivals from MSI and Intercomp. The Jumboweigher series of crane scales offer high capacity, quality, accuracy, and safety at low capacity prices and are utilized worldwide in in a variety of manufacturing and industrial applications.


Jumbo Weigher features & benefits:

  • Large bright LED Display
  • High Accuracy
  • Alluminium Housing
  • Power saving mode
  • Tare
  • Hold Function
  • Large keys make operation simple
even if wearing gloves

As with all Straightpoint products each Jumboweigher crane scale receives superior electronics, excellent build quality and certified calibration and proof testing. The heavy duty Crane scale is extremely accurate, and is manufactured from quality materials, featuring a high strength aluminum alloy outer housing.
Each unit is equipped with a large and bright LED display that can be easily read even in direct sunlight. The simple to use remote features oversized buttons for use with gloved hands and provides for control of tare and hold functions. Battery charging intervals are extended by the standby power saving mode as well as the automatic shut off feature. As with all Straightpoint products each Jumboweigher is safety tested and is supplied with certification of calibration and proof testing.
If you are looking for a high quality, cost effective crane scale and are unwilling to give up features and safety, look no further than the Jumboweigher crane scale from Straightpoint.

Jumbo Weigher applications:

Under Hook Crane Weighing | Under Tripod Load Monitoring | Light Duty Structural Load Testing | Pipe and Fastener High Torque Load Application | Wire Rope and Cable Tension Monitoring | Shipping and Receiving Weighing | Escalator Comb Impact Load Testing


All Jumbo Weigher crane scales are suppled with the following as standard:

http://www.straightpoint.com/images/stories/graphicimages/jumbo-weigher-crane-scale-remote-control.jpg
  • Remote Control
  • Proof test certificate
  • Operator Manual

Specifications


Jumbo Weigher Crane Scale - Specifications

Metric Dimensions = millimetres (mm)

Part Number JW5T JW10T JW20T
Capacity 5000kg 10,000kg 20,000kg
Resolution 2kg 5kg 10kg
Units kg kg kg
Weight 18kg 29kg 75kg
Safety Factor 5:1
Battery Type Internal rechargeable
Battery Life 20hrs
Display Type 30mm LED
Operating Temp -10 to 40c
Accuracy +/- 0.3% of applied load
Dimension A 195 195 355
Dimension B 255 255 230
Dimension C 180 180 165
Dimension D 715 780 1115
Dimension E 72 90 140
Dimension F 90 110 230
Dimension G 36 50 70
Dimension H 595 660 980

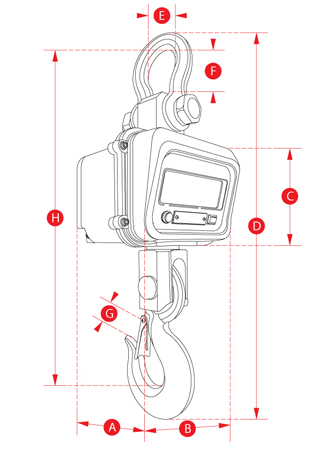

jumbo weigher crane scale dimensionsjumbo weigher crane scale dimensionsImperial Dimensions = inches

Part Number JW5TU JW10TU JW20TU
Capacity 11,000lbs 22,000lbs 44000lb
Resolution 5lbs 10lbs 20lb
Units lbs lbs lbs
Weight 40lbs 64lbs 16.5lb
Safety Factor 5:1
Battery Type Internal rechargeable
Battery Life 20hrs
Display Type 1.18" LED
Operating Temp 14˚F to 104˚F
Accuracy +/- 0.3% of applied load
Dimension A 7.68 7.68 13.98
Dimension B 10.04 10.04 9.06
Dimension C 7.09 7.09 6.50
Dimension D 28.15 30.71 43.90
Dimension E 2.83 3.54 5.51
Dimension F 3.54 4.33 9.06
Dimension G 1.42 1.97 2.76
Dimension H 23.43 25.98 38.58
load cells available to hire

Jumbo Weigher Downloads

straightpoint metric data

straightpoint imperial data

straightpoint manual
