Overview

Jumbo Weigher Trade | Crane Scale

Available in capacities 1.5, 3 and 5t.
Heavy duty crane scale OIML approved
Bright LED display makes it easy to read in the lowest light applications.

Jumbo Weigher Trade features & benefits:

Large bright LED Display
High Accuracy
Alluminium Housing

Power saving mode
Tare
Hold Function

Large keys make operation simple

even if wearing gloves

Jumbo Weigher Trade applications:

Overhead weighing applications where materials are charged for by weight

All Jumbo Weigher Trade crane scales are suppled with the following as standard:
	Remote Control Proof test certificate Operator Manual

Specifications

Jumbo Weigher Trade Crane Scale - Specifications

Metric Dimensions = millimetres (mm)

Part Number	JWT1T5	JWT3T	JWT5T
Capacity	1500kg	3000kg	5000kg
Resolution	0.5kg	1kg	2kg
Units	kg	kg	kg
Weight	12kg	12kg	19kg
Battery Type	Internal rechargeable
Battery Life	120hrs
Display Type	24.6mm LED
Operating Temp	0-40c
Accuracy	+/- 0.3% of applied load
Dimension A	230	230	230
Dimension B	210	210	210
Dimension C	180	180	180
Dimension D	630	670	845
Dimension E	85	85	85
Dimension F	95	95	125
Dimension G	35	35	40
Dimension H	570	620	765

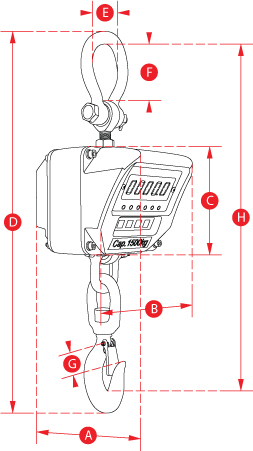

jumbo weigher trade crane scale dimensions
Imperial Dimensions = inches

Part Number	JWT1T5U	JWT3TU	JWT5TU
Capacity	1.5t	3t	5t
Resolution	0.5kg	1kg	2kg
Units	kg	kg	kg
Weight	27lbs	27lbs	42lbs
Battery Type	Internal rechargeable
Battery Life	120hrs
Display Type	1" LED
Operating Temp	32˚F to 104˚F
Accuracy	+/- 0.3% of applied load
Dimension A	9.06	9.06	9.06
Dimension B	8.27	8.27	8.27
Dimension C	7.09	7.09	7.09
Dimension D	24.80	26.38	33.27
Dimension E	3.35	3.35	3.35
Dimension F	3.74	3.74	4.92
Dimension G	1.38	1.38	1.57
Dimension H	22.44	24.41	30.12
