Compound Plus | Tension Load CellCompound Plus loadcell system

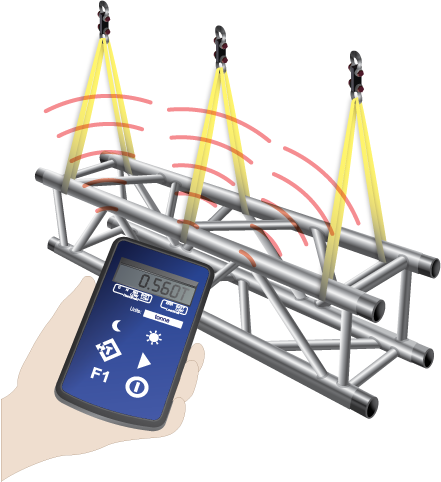

Based on the Radiolink plus load cell. The Compound plus load cell system allows you to connect several Radiolink load cells to a single advanced handheld display and view individual loads and total load (up to a maximum of 12 Radiolinks in a single system) Calibrated in tonnes or lb, other units are available on request.


Compound Plus features & benefits:

  • Proprietary 2.4 GHz Wireless
  • Industry Leading Wireless Range
  • Error Free Data Transmission
  • Unrivalled Resolution
  • Environmentally Sealed
  • Internal Antennae
  • Compact Size
  • Remote On-Off
  • Lightweight
  • Advanced Options
  • Unmatched Battery Life

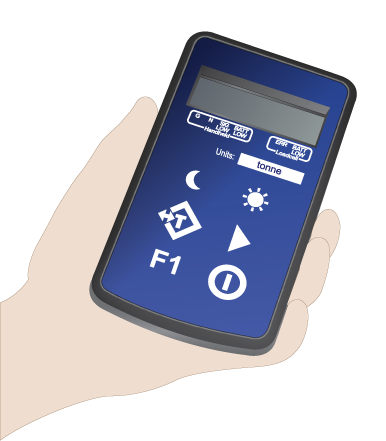

advanced hand controlSelect how many Radiolinks you require and then add Straightpoint's Advanced Handheld Display SW-AC, along with any other options.

Compound Plus applications:

Water weight testing | Stage rigging | Loadcell Rental | Multi point lifts

All Compound Plus load cells are suppled with the following as standard:

loadcell-carry-case rfid loadcell tag
  • AA Batteries
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case
  • RFID Tagged

Specifications


Compound Plus Load Cell - Specifications

Metric Dimensions = millimetres (mm)

Part Number CP1T CP2T5 CP5T CP12T CP25T CP35T CP50T CP75T CP100T CP150T CP200T CP250T CP300T
Capacity 1000kg 2.5te 5te 12te 25te 35te 50te 75te 100te 150te 200te 250te 300te
Resolution 0.5kg 0.001te 0.001te 0.002te 0.005te 0.005te 0.01te 0.01te 0.05te 0.05te 0.1te 0.1te 0.1te

Imperial Dimensions = inches
Part Number CP1TU CP2T5U CP5TU CP12TU CP25TU CP35TU CP50TU CP75TU CP100TU CP150TU CP200TU CP250TU CP300TU
Capacity 2200lb 5500lb 11000lb 26000lb 55000lb 77000lb 110000lb 165000lb 220000lb 330000lb 440000lb 550000lb 660000lb
Resolution 1lb 2lb 2lb 5lb 10lb 10lb 20lb 20lb 100lb 100lb 200lb 200lb 200lb

Accessories

Wireless Accessories

Our range of wireless accessories may be used with the load cells:
Radiolink Plus, Compound Plus, Wireless Loadshackle and Wireless Compression Load Cell ranges.



SW-OAM - Wireless overload alarm module


SW-OAM - Wireless overload alarm module
Supplied with an audiovisual alarm, the SW-OAM can be programmed to any Radiolink to monitor loads. Then at a preset point the alarm will activate and open or close a >240VAC, 5 amp relay.Ideal for use in a wireless overload detection system. 110-240VAC.

Metric Datasheet...Imperial Datasheet...
SW-A01i - Wireless base station with analogue output


SW-A01i - Wireless base station with analogue output
Provides a configurable analog output for the range of Straightpoint wireless loadcells and is housed in IP67 housing for industrial installallation. The output can be selected from the pre-calibrated voltage and current ranges. 0-10Volts, ±10Volts,0-5Volts, ±5Volts, 0-20mA, 4-20mA. Useful for integrating with a PLC.

Metric Datasheet...Imperial Datasheet...
SW-SO - Serial output ASCII string module


SW-SO - Serial output ASCII string module
This module generates a programmable RS232 serial output ASCII string which can include data from up to 8 Compound plus loadcells as well as optionally sum them. The output is suitable for connecting to many devices that require simple serial RS232 input.

Metric Datasheet...Imperial Datasheet...

RDCP - Desktop controller




RDCP - Desktop controller
Wireless Windows-based software that allows the operator full remote control of the loadcell. Can be set to datalog (time/date and load) into a spreadsheet by user input time interval (min 3 hertz). A spare USB port is required.

Datasheet...

SW-MWLC - Multiple wireless load cell controller software




SW-MWLC - Multiple wireless load cell controller software
This software for Windows PC's allows up to 24 of our wireless loadcells (Radiolink or Wireless Loadshackles) to be viewed and logged cable free to a CSV file. You can configure the number of loadcells (max 24), and set extra channels to sum data or record peaks etc. These configurations can be saved and re-loaded at any time.

Metric Datasheet...Imperial Datasheet...
SW-SD - Wireless slave display



SW-SD - Wireless slave display
125mm high red LED slave display that will wirelessly display the load on a Radiolink. Suitable for mounting on a crane gantry, requires mains power. 110-240VAC.

Metric Datasheet...Imperial Datasheet...

 SW-SB - Wireless signal booster


SW-SB - Wireless signal booster
The SW Active Repeater module will enable the SW range of acquisition modules to span around obstacles or increase range or coverage.

Metric Datasheet...Imperial Datasheet...
